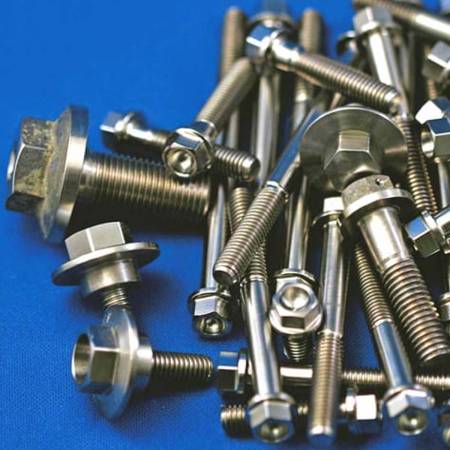

| Titanium Fasteners Material Specification |
ASTM B 348 ASME SB 348 |
| Standard |
DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM, and all International Standards |
| Titanium Fasteners/ Bolts Size |
M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length |
3 mm to 200 mm |
| Titanium Bolts, Studs Threads: |
METRIC, BSW, BSF, UNC, UNF, or as required |
| Application wise Titanium Fasteners |
- Titanium Bicycle Bolts
- Titanium Motorcycle Bolts
- Titanium Chainring Bolts
- Titanium Archery Bolts
- Titanium Aerospace Bolts
- Titanium Aircraft Bolts
- Titanium Bike Bolts
- Titanium Motorcycle Disc Bolts
|
| Titanium Alloy Fasteners Standard: |
ANSI – American National Standards Institute
- MS / NAS/ AN/ AS / AGS/ DIN/ EN/ NSN/ NFL
- ANSI B 18.2.4 2M
- ANSI B 28.2.4 1M
- Titanium Alloy Stud Bolt length is defined in ASME B16.5 standard
- Titanium Alloy Hex nuts are defined in ASME B18.2.2
- ASME B18.5
DIN: DIN 931, DIN 933, DIN 934, DIN 970
UTS – Unified Thread Standard: UNC, UNF, UNEF, UNS, NPT, NPTF
ISO – International Organization for Standardization: ISO 4032, ISO 4033, JIS standards
|
| Stocking distributor of |
Alcoa Fastening Systems (Arconic) incorporating Kaynar, Republic and Simmonds, Paolo Astori, Maclean Esna, Greer, and SPS. |
| SCOPE OF MANUFACTURE |
- Hot Forged Titanium Fasteners, Nut / Bolt; up to M36 / 1-1/2” Dia, up to 1100mm long
- CNC Machined Titanium Fasteners, Nut / Bolt; up to M100 / 4” Dia, up to 1500mm long
|
| Titanium Fasteners In Form of: |
Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: |
Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Popular Types of Titanium Alloy Bolts |
Titanium Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Countersunk Bolts, etc. |
| Popular Types of Titanium Alloy Nut |
- Metric nuts: hex and anchor
- Press nuts: fixed and floating
- Sealing nuts: standard and miniature
- Shank nuts
- Spline nuts
- Hex nuts: nylon insert, all-metal; heavy, light, and miniature
- Twelve points (double hex) nuts
- Aircraft Nut Plates: anchor nut plates, fixed nut plates, floating nut plates, high strength nut plates, self-locking nut plates
- Anchor nuts & Plate nuts: one-lug, two-lug, corner, right-angle; full-size, miniature; fixed, floating; locking, and non-locking
- Barrel nuts and retainers
- Solid Nuts
- Capped nuts & Dome nuts: anchor and hex
- Clinch nuts: nylon insert, all-metal; heavy, light, and miniature
- Clip nuts: sheet metal, connector mounting
|
| Popular Types of Titanium Alloy Washer |
Titanium Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc. |
| Titanium Rivets for aerospace industry |
- Structural Rivets
- Solid Rivets
- Blind Rivets
|
| Aerospace Titanium Inserts & Potted Inserts |
- Threaded Inserts are the first choice because of their high quality, load-bearing threads even in single thin sheets.
- Wire thread Inserts for a durable and permanent screw thread when inserted into pre-tapped holes.
- Keensert Inserts for high-strength joints in low-strength materials.
|
| Titanium Fasteners Packing: |
IN BULK: canton, pallet, Small Boxs / carton/pallet, or customer request |
| Titanium bolting Test Certificate: |
Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Titanium Fasteners finishing: |
Zinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel-plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating, and some special one like DACROMET |
| Production process |
M2-M24: Cold Forging, hot forging M24-M100, machining, and CNC for Customized connecting element |
| Titanium bolting materials Surface Coating: |
- Teflon Coated Fasteners
- Phosphate Coated Fasteners
- Zinc Coated Fasteners
- PTFE Coated Titanium Fasteners
- Xylon Coated Fasteners
- Cadmium Coated Fasteners
- Hot Dipped Galvanizing Coated Fasteners
All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.
|
