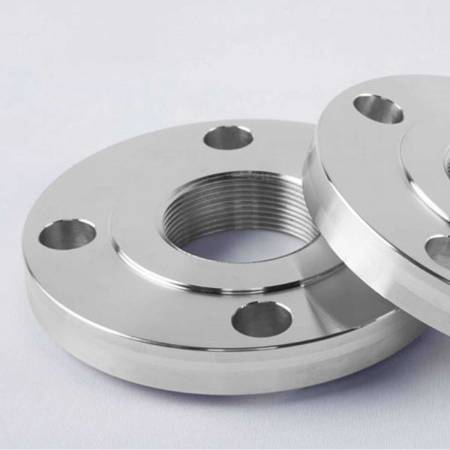

Delve into the realm of stainless steel flanges with Randhir Metal And Alloys Pvt. Ltd., where quality meets precision. Crafted from premium stainless steel, our Stainless Steel Flanges in Mumbai exhibit exceptional features that cater to a multitude of industrial needs. Available in various sizes ranging from 01 inch to >30 inches and adhering to material standards such as ASTM A105, ASTM A182, and ANSI B16.5, our flanges boast durability, reliability, and versatility. With a choice of brown, green, or silver colors and curved, rectangular, or flat shapes, our flanges seamlessly integrate into diverse piping systems, enhancing efficiency and performance.
In the bustling industries of Mumbai and beyond, stainless steel flanges play a pivotal role in ensuring seamless operations. From petrochemical plants to food processing units, our flanges find versatile applications, facilitating secure connections in piping systems. They are instrumental in constructing pipelines, supporting structural frameworks, and maintaining fluid flow in diverse environments. As one of the leading Stainless Steel Flanges Manufacturers in Mumbai, we strive to serve our customers with quality products that meet or exceed their expectations. With their corrosion-resistant properties and robust construction, our flanges provide reliable solutions to meet the demands of modern industrial processes.
Here, we prioritize precision in design and manufacturing to deliver flanges that meet stringent specifications. Our stainless steel flanges undergo meticulous testing to ensure compliance with international standards such as ASTM, ASME, and API. As one of the top Stainless Steel Pipe Flange Suppliers in India, we are committed to quality, innovation, and reliability in all our products. With dimensions tailored to specific requirements and adherence to material standards, our flanges guarantee compatibility and reliability in a wide range of applications. From pressure vessels to offshore platforms, our flanges demonstrate exceptional performance under varying conditions, safeguarding the integrity of critical systems.
Specification: | Stainless Steel Pipe Fittings |
Standard | EN, ISO, DIN, JIS, NPT |
Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
Schedule: | Schedule 5 TO Schedule XXS. |
Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
Type: | Butt Weld (BW), Seamless (SMLS) Welded |
Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
Type Of Dimension: | BS1640, EN 10253 - 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
Schedule 40 Stainless Steel Pipe Fittings Dimensions
NPS | O.D. | Ave. I.D. |
Minimum WALL |
Normal Weight Chart In KG |
Maximum W.P. psi |
1/4" | .540 | .344 | .088 | .086 | 780 |
3/8" | .675 | .473 | .091 | .115 | 620 |
1/2" | .840 | .602 | .109 | .170 | 590 |
3/4" | 1.050 | .804 | .113 | .226 | 480 |
1" | 1.315 | 1.029 | .133 | .333 | 450 |
*1-1/4" | 1.660 | 1.360 | .140 | .450 | 370 |
*1-1/2" | 1.900 | 1.590 | .145 | .537 | 330 |
*2" | 2.375 | 2.047 | .154 | .720 | 280 |
2-1/2" | 2.875 | 2.445 | .203 | 1.136 | 300 |
*3" | 3.500 | 3.042 | .216 | 1.488 | 260 |
3-1/2" | 4.000 | 3.521 | .226 | 1.789 | 240 |
*4" | 4.500 | 3.998 | .237 | 2.118 | 220 |
5" | 5.563 | 5.016 | .258 | 2.874 | 190 |
*6" | 6.625 | 6.031 | .280 | 3.733 | 180 |
*8" | 8.625 | 7.942 | .322 | 5.619 | 160 |
*10" | 10.750 | 9.976 | .365 | 7.966 | 140 |
*12" | 12.750 | 11.889 | .406 | 10.534 | 130 |
*14" | 14.000 | 13.073 | .437 | 12.462 | 130 |
*16" | 16.000 | 14.940 | .500 | 16.286 | 130 |
*18" | 18.000 | 16.809 | .562 | 20.587 | 130 |
*20" | 20.000 | 18.743 | .593 | 24.183 | 120 |
*24" | 24.000 | 22.544 | .687 | 33.652 | 120 |
Schedule 80 SS Fittings Dimensions
NPS | O.D. | Ave. I.D. |
minimum WALL |
Normal Weight In KG |
Maxium W.P. psi |
1/4" | .540 | .282 | .119 | .105 | 1130 |
3/8" | .675 | .403 | .126 | .146 | 920 |
1/2" | .840 | .526 | .147 | .213 | 850 |
3/4" | 1.050 | .722 | .154 | .289 | 690 |
1" | 1.315 | .936 | .179 | .424 | 630 |
1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
2" | 2.375 | 1.913 | .218 | .984 | 400 |
2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Class 150 Stainless Steel Fittings Dimensions
NPS | Diameter Of A |
Diameter Of B |
Approx. Weight in Kilogram |
---|---|---|---|
1/8″ | 0.69 | 0.66 | 0.06 |
1/4″ | 0.80 | 0.80 | 0.10 |
3/8″ | 0.94 | 0.97 | 0.15 |
1/2″ | 1.11 | 1.17 | 0.22 |
3/4″ | 1.24 | 1.38 | 0.32 |
1″ | 1.43 | 1.74 | 0.52 |
1-1/4″ | 1.72 | 2.07 | 0.76 |
1-1/2″ | 1.87 | 2.36 | 0.99 |
2″ | 2.25 | 2.86 | 1.49 |
2-1/2″ | 2.68 | 3.57 | 2.78 |
3″ | 3.05 | 4.23 | 4.41 |
4″ | 3.72 | 5.24 | 6.72 |
Class 300 Stainless Steel Fittings Dimensions
NPS | diameter Of A |
diameter Of B |
Approx. Weight in Kilogram |
---|---|---|---|
1/8″ | 0.62 | 0.65 | 0.08 |
1/4″ | 0.69 | 0.81 | 0.12 |
3/8″ | 0.75 | 0.96 | 0.19 |
1/2″ | 0.87 | 1.16 | 0.25 |
3/4″ | 0.96 | 1.38 | 0.36 |
1″ | 1.11 | 1.74 | 0.58 |
1-1/4″ | 1.28 | 2.07 | 0.85 |
1-1/2″ | 1.38 | 2.36 | 1.12 |
2″ | 1.61 | 2.85 | 1.61 |
2-1/2″ | 1.93 | 3.57 | 2.36 |
3″ | 2.15 | 4.23 | 3.44 |
4″ | 2.58 | 5.24 | 5.42 |
Steel Pipe Fittings Hs Code
Hs Code | Des. | No Of Shipments |
---|---|---|
7307 | Tube Or Pipe Fittings (For Example, SW Couplings, BW Elbows, Sleeves), Of Iron Or Steel | |
73072900 | Other | 11954 |
73079990 | Other | 1350 |
73072200 | Threaded Elbows, Bends And Sleeves | 482 |
73072300 | Butt Welding Fittings | 384 |
73079190 | Other |
Fabricated SS Fittings Pressure Rating
(oF) | (oC) | 150 |
---|---|---|
-20 to 150 | -29 to 66 | 300 |
200 | 93 | 265 |
250 | 121 | 225 |
300 | 149 | 185 |
350 | 177 | 150 |
400 | 204 | - |
450 | 232 | - |
500 | 260 | - |
550 | 288 | - |
Stainless Steel Buttweld Pipe Fittings Mechanical Properties
Type | UNS | Tensile (ksi) min. |
Yield (ksi) min. |
Elongation min. |
Hardnes (Brinell) max. |
Hardness (Rockwell B) max. |
---|---|---|---|---|---|---|
302 | S30200 | 75 | 30 | 40% in 2″ | 183 | 88 |
304* | S30400 | 75 | 30 | 40% in 2″ | 183 | 88 |
304L* | S30403 | 70 | 30 | 40% in 2″ | 183 | 88 |
309 | S30900 | 75 | 30 | 40% in 2″ | 217 | 95 |
309S | S30908 | 75 | 30 | 40% in 2″ | 217 | 95 |
310 | S31000 | 75 | 30 | 40% in 2″ | 217 | 95 |
310S | S31008 | 75 | 30 | 40% in 2″ | 217 | 95 |
316* | S31600 | 75 | 30 | 40% in 2″ | 217 | 95 |
316L* | S31603 | 70 | 25 | 35% in 2″ | 217 | 95 |
317 | S31700 | 75 | 30 | 35% in 2″ | 217 | 95 |
317L | S31703 | 75 | 30 | 35% in 2″ | 217 | 95 |
321 | S32100 | 75 | 30 | 40% in 2″ | 183 | 88 |
347 | S34700 | 75 | 30 | 40% in 2″ | 183 | 88 |
SS Seamless Fittings Chemical Composition
Ni
|
8 – 11
|
8 – 11
|
8 – 11
|
Fe
|
Balance
|
||
Cr
|
18 – 20
|
18 – 20
|
18 – 20
|
C
|
0.08 maximum
|
0.08 maximum
|
0.035 maximum
|
Si
|
0.75 maximum
|
0.75 maximum
|
0.75 maximum
|
Mn
|
2 maximum
|
2 maximum
|
2 maximum
|
P
|
0.040 maximum
|
0.040 maximum
|
0.040 maximum
|
S
|
0.030 maximum
|
0.030 maximum
|
0.030 maximum
|
N
|
0.10 – 0.16
|
0.10 – 0.16
|
A403 SS Fittings Working Pressure
Service | Pressure Temperature Limits | Pressure Limits |
---|---|---|
condensate & Steam | maximam 366oF (186oC), min. 0oF (-18oC) |
150 psig (1000 kPa) |
gases & vapors, Air | maximam 200oF (93oC), min. 0oF (-18oC) |
150 psig (1000 kPa) |
Nonflammable Liquids | maximam 250oF (121oC), min. 0oF (-18oC) |
350 psig (2300 kPa) |
Opting for our stainless steel flanges presents a myriad of benefits that elevate industrial efficiency and reliability. As one of the most prominent Stainless Steel Pipe Flange Exporters in India, we take pride in our unmatched quality and customer-centric approaches. With their durable construction and corrosion resistance, our flanges ensure long-term performance, reducing maintenance costs and downtime. Additionally, their versatility and compatibility with different piping systems offer flexibility in design and installation. Furthermore, our commitment to quality assurance and customer satisfaction guarantees peace of mind, making us the preferred choice for stainless steel flanges in Mumbai and across India.
Exploring the durability and reliability of carbon steel flanges unveils a world of possibilities with Randhir Metal And Alloys Pvt. Ltd.. Crafted from premium-grade carbon steel, our Carbon Steel Flanges in Mumbai boast exceptional features that cater to diverse industrial needs. Available in sizes ranging from 0.5inch NB to 60inch NB and adhering to material standards such as ASTM A105, ASTM A182, and ASTM A351, our flanges are synonymous with strength, resilience, and performance. With a focus on quality and precision, our carbon steel flanges stand as the epitome of reliability in Mumbai and beyond.
Dive into the world of nickel alloy flanges with Randhir Metal And Alloys Pvt. Ltd., where quality meets precision. Crafted from top-grade nickel alloy, our Nickel Alloy Flanges in Mumbai boast exceptional features that cater to diverse industrial needs. With a size range of 510 inches and adherence to material standards such as ANSI B16.5, our nickel alloy flanges epitomize strength, resilience, and performance. Embodying durability and reliability, our flanges stand as a testament to excellence in Mumbai and beyond.
Embark on a journey into the realm of mild steel flanges with Randhir Metal And Alloys Pvt. Ltd., where quality meets precision. Crafted from high-grade mild steel, our Mild Steel Flanges in Mumbai exhibit exceptional features tailored to meet diverse industrial needs. With a compact size of 1/2 inch and adherence to material standards such as ASTM A182 and ANSI B16.5, our mild steel flanges epitomize strength, resilience, and reliability. Embodying durability and versatility, our flanges stand as a testament to excellence in Mumbai and beyond.
Embark on a journey into the realm of duplex steel flanges with Randhir Metal And Alloys Pvt. Ltd., where quality meets precision. Crafted from premium-grade duplex steel, our flanges boast exceptional features tailored to meet diverse industrial needs. With adherence to material standards such as ASTM A105 and a sleek round shape, our Duplex Steel Flanges in Mumbai epitomize strength, resilience, and reliability. Embodying durability and versatility, our flanges stand as a testament to excellence in Mumbai and beyond.
Embark on a journey into the realm of super duplex flanges with Randhir Metal And Alloys Pvt. Ltd., where quality meets precision. Crafted from top-grade materials and adhering to ASTM A105, ASTM A182, ASTM A351, and ANSI B16.5 standards, our Super Duplex Flanges in Mumbai exhibit exceptional features tailored to meet diverse industrial needs. With a variety of sizes ranging from 01 inch to >30 inches and a bright surface finish, our super duplex steel flanges stand as a symbol of strength, resilience, and reliability. Embodying durability and versatility, our flanges stand as a testament to excellence in Mumbai and beyond.
Embark on a journey into the realm of Hastelloy flanges with Randhir Metal And Alloys Pvt. Ltd., where quality meets precision. Crafted with expertise and precision, our Hastelloy Flanges in Mumbai stand as a testament to excellence in Mumbai and beyond. With our commitment to delivering top-notch products, we ensure that our Hastelloy flanges meet the highest industry standards. We are dedicated to providing superior quality Hastelloy flanges to meet the diverse needs of our customers.
At Randhir Metal And Alloys Pvt. Ltd., we take pride in offering a wide range of high-quality Inconel Flanges that are tailored to meet the diverse needs of industries across Mumbai and beyond. Our Inconel Flanges in Mumbai stand out for their exceptional features, making them a preferred choice for critical applications.
