| Material |

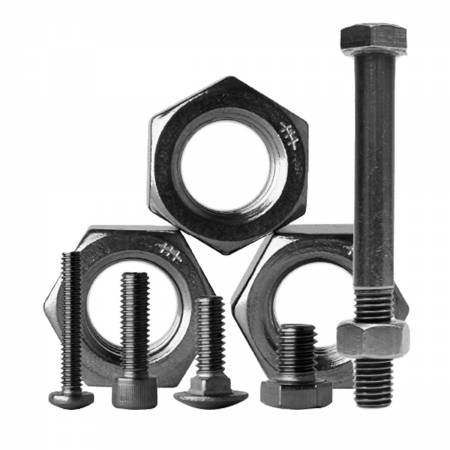

Monel Alloy Fasteners |
| Monel Fasteners ASTM / ANSI |
ASTM B865-04 / ASME SB865-04, ASTM B467 / ASME SB467 |
| Grades of Monel Fasteners |
Alloy 400 Fasteners
Alloy K500 Fasteners |
| Size of Monel Fasteners |
M02 to M160 |
| Length of Monel Fasteners |
3 mm to 200 mm |
| Monel Fasteners Threads: |
BSW, UNC, BSF, UNF METRIC, or as required |
| M3, M14, M2.5, M2, M12, M5, M6, M4, M20, M16, M30, M24, M36, M8, M10 etc. |
| Monel Fasteners Standard: |
JIS, ASTM,BS, GB, DIN, IS, ISO
ANSI – American National Standards Institute
- ASME B18.5
- ANSI B 28.2.4 1M
- Stud Bolt length is defined in ASME B16.5 standard
- ANSI B 18.2.4 2M
- Hex nuts are defined in ASME B18.2.2
DIN: DIN 931, DIN 970, 934 DIN DIN 933
UTS – Unified Thread Standard: NPTF, UNS, NPT, UNF, UNC, UNEF
ISO – International Organization for Standardization: ISO 4033 , ISO 4032, JIS standards
|
| Widely Use Monel Bolts Types |
Monel Hex Head Bolt, Hex Bolt, Square Bolt, Eye Bolt, T Bolt, U Bolt, Lag Bolt, Counter sunk Bolt, etc. |
| Widely Use Monel Nut Types |
Monel Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut, etc. |
| Widely Use Monel Screw Types |
Monel Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw, etc. |
| Widely Use Monel Washer Types |
Monel Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer, etc. |
| Widely Use Monel Studs Types |
Monel Double Ended Studs, Threaded Tod, Tie Bars, Tie Rods. |
| Scope of Manufacture |
- CNC Machined, Nut / Bolt; up to M100 / 4” Dia, up to 1500mm lg
- Hot Forged, Nut / Bolt; up to M36 / 1-1/2” Dia, up to 1100mm lg
- ASME B18.16.6 Prevailing Torque Locknuts, ASME B18.13 Screw, and Washer, ASME B18.18 Fasteners
- Monel Fasteners Standard : ANSI / ASME B18.2.1, B18.3, B18.6.3, B18.6.7M, B1.1, B16.47, B18.2.2, B18.22.1
|
| Monel Fasteners In Form of: |
Square, Round, Threading as per Gauge, Round Etc. |
| Test Certificate of Monel Bolting : |
EN 10204 / 3.1 |
| Finishing of Monel Fasteners: |
Zinc (yellow, white, blue, black), black oxide,
Dacroment, Geometry, nickel-plated, anodizing, plated zinc-nickel, Stainless steel: Passivated
Bright Zinc Plated (BZP), Self-Colour, Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, Mechanically Applied coating, and some special one like DACROMET |
| Monel Fasteners Production process |
hot forging M24-M100, M2-M24: Cold Froging
for Customized connecting element machining and CNC |
| Monel bolts Head drive: |
Six-Lobe, Phillips/Slot, Slotted, Phillips, etc |
| Origin and service-region: |
European
Origin of are Western European. However, projects with eastern origin are possible on request. |
| Surface Coating of Monel Fasteners materials: |
- Xylon Fasteners
- Cadmium Fasteners
- Teflon Fasteners
- Hot Dipped Galvanizing Fasteners
- Phosphate Fasteners
- Zinc Fasteners
- PTFE Coated Fasteners
- All surface finishes can be supplied, including Nickel, Geomet, Zinc, Dacromet, Galvanised, Electroless Sherardized,& PTFE.
|
| Top Manufacturers of Fasteners |
SPAX® Screws, EBY Fastener, Sundaram Kundan, GKW, Infasco, Precision, APL, Unbrako, Etc. |
| Packing of Monel Fasteners: |
In Bulk: pallet, Canton, Small Carton / Boxes / Pallet, or customer request |
| Specialized manufacturer of |
Monel High Tensile Fasteners, Bolts |
| Monel Fasteners Test Certificates |
- Third-Party Inspection Report, etc
- Raw Materials Certificate
- EN 10204/3.1B
- 100% Radiography Test Report
|
